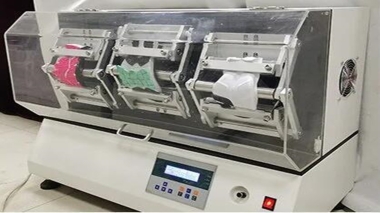

EN sole zigzag testing machine

Product Introduction:

The EN sole bending tester is used for 90 degree bending test of the sole of rubber, EVA and other zigzag shoes to detect its bending resistance and the ability to resist the growth of the incision, that is, the zigzag resistance.

Reference standard:

SATRA TM161, GB/T2099-2007, ENISO 20344-2011, EN ISO17707, ENISO-20344, DIN53543 and other standards.

Technical parameters:

1, the number of stations: 1, 3 stations （at the same time can measure 1, 3 outsole）

2, bending Angle: （90±2）º

3, speed: 5——150cpm adjustable

4, point function: sample installation, one-key self-positioning function

5, volume: 86*46*80cm

6, zigzag shaft diameter: 30mm

7, Protective cover: inductive safety cover

8, Power supply: AC220V, 10A
