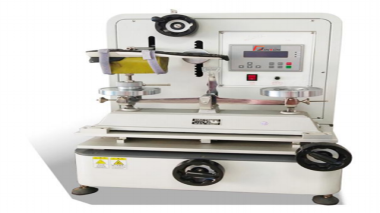

G612 national standard shoe wear testing machine

Product Introduction:

The whole shoe wear testing machine is used to test the wear resistance of soles and sole pieces. The principle is to press the rotating grinding head vertically above the sample, and carry out rotary wear test on the test sample at a certain load weight and a speed of 191r/min. After the test is completed, the wear length of the sample is measured to evaluate whether the sample is qualified.

Reference standard:

GB/T 3903.2-2017, QB/T4329-2012 and other standards

Technical specifications:

Performance: Accurate weighing, stability, good repeatability, the use of environmental requirements: at a specific temperature （23±2℃）， measuring the weight of the material and water

Speed: （191±5）r/min（adjustable）

Load: 500g（5g-500g optional）

Test time: 20 minutes （adjustable）

Grinding wheel: 20±0.1 diameter 4±0.1mm thick, T12 steel grinding wheel, with 72 teeth, tooth Angle 90°±5°, tip width 0.2±0.05mm, tip roughness Ra=3.2um, hardness HRC³55, coaxiality 0.03mm

Balance range: 5000g, accuracy: 0.5g

Volume: 560×510×830mm

Weight: 70kg

Power supply: AC220V,10A
