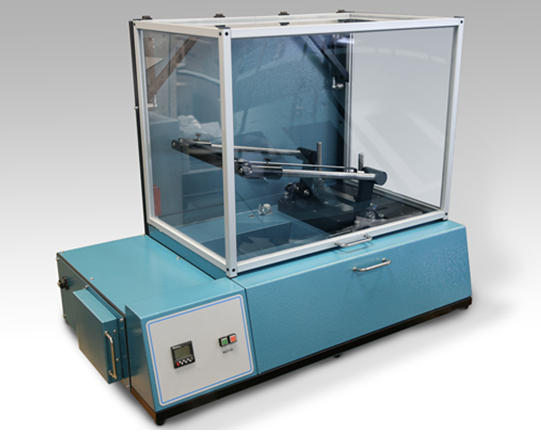

G645 leather shoe hook stiffness testing machine

Product Introduction:

Leather shoe hook stiffness tester is suitable for measuring the longitudinal bending stiffness of leather shoe hook. The principle is to fix the heel of the hook, load the load at the front end, make it bend and deform, and then measure the bending degree of the hook to calculate the bending stiffness of the hook. The instrument is lightweight and durable, easy to operate and maintain, and can quickly measure the accurate stiffness of the hook.

Reference standard:

BS-5131/4, QB/T1812, 1813, QB/T4329-2012, SATRA TM58 and other standards

Technical specifications:

1. Adjustable Angle of the rear fixture: 30°

2. Special card length: （60±0.02）mm

3. Front splint thickness: 12mm

4. Accuracy: 0.01mm

5. Measuring range: 0.01——10mm

6. Instrument size: 450×200×450mm

7. Weight: 200g×4pcs

8. Weight: 20kg
