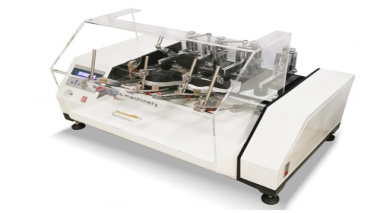

G650D Finished shoe bending tester (heel lift)

Product Introduction:

The finished shoe resistance zigzag tester drives the zigzag part of the finished shoe to zigzag repeatedly with the zigzag Angle matched by the shoe type and the fixed rate of the zigzag machine. After reaching the preset time or completing the specified zigzag number, the damage of the zigzag part of the finished shoe is observed and tested. To complete the number of twists and turns without damage or complete the specified number of twists and turns of the finished shoe to evaluate the zigzag resistance of the finished shoe.

Main functions:

Test sports shoes, casual shoes, work shoes and other finished shoes, after a long time, fixed frequency, fixed Angle of continuous bending, evaluate its folding performance or check its cracking degree.

Reference standard:

SATRA TM92 and other standards.

Technical specifications:

1. Two pairs of shoes can be tested at the same time

2. Zigzag Angle: adjustable from 5 to 90°

3. Resistance to zigzag speed: 5 to 150cpm adjustable （with speed display）

4. Permissible sample length: 150 to 400mm

5. Volume: 105*83*78cm

6. Motor: variable frequency motor

7. Counter: LCD,0-9999,999

9. Power: AC220V, 10A
