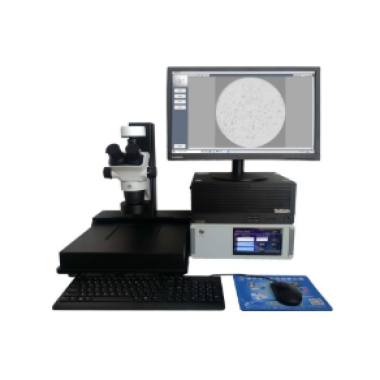

Cleanliness Analysis System

The cleanliness analysis system fully complies with the requirements of standards such as VDA19.1 - 2015, ISO16232, ISO4406, ISO4407, QV11111, as well as customer - defined standards. It adopts optical polarization technology and an automatic polarization device. Through a single scan, it can determine the metallic luster reflection properties of all contaminants on the entire filter membrane. Meanwhile, according to the morphological definition of fibers in VDA19.1 (stretching length; maximum inscribed circle diameter > 20, maximum inscribed circle diameter ≤ 50 micrometers), it can automatically complete the classification and size measurement of the following four types of particles within a few minutes: reflective particles, reflective fibers, non - reflective particles, and non - reflective fibers. It can also automatically generate reports based on statistical results (particle size, dimensions, metal, non - metal, fiber).

Functional Features

1. Optical system design allows for simultaneous differentiation between reflective/non - reflective particles with a single scan, enabling uninterrupted scanning. 2. All - electric hardware design with full - process automatic focusing, automatic objective lens switching, and automatic scanning of the overview map, minimizing manual operations to the greatest extent. 3. A simple operation interface with large - button design, making it convenient to operate with a touch screen and streamlining operation steps as much as possible. 4. Built - in database management system, eliminating the need to save the filter membrane. 5. Optional high - magnification objective lenses can identify extremely small particles with a minimum diameter of 2.5μm and observe their appearance at up to 100 - times magnification. 6. Supports industry - common standards such as ISO16232, ISO4406, VDA, and allows for easy customization of standards. 7. The image analysis system is equipped with a high - resolution digital camera to ensure analysis accuracy. 8. Comes with a cleanliness standard ruler with an attached certificate, enabling one - click completion of the system calibration process.
