Main technical parameters：
Type: touch screen automatic
Sample length: 600 ± 25mm
Fuel: methane gas or gas （own）
Flame application time: 0 —— 999.9S can be set arbitrarily
Afterburning time: 0 —— 999.9S
Flame length: inner flame 50 outer flame 100

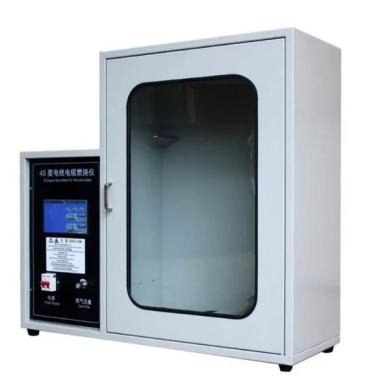

Combustion box size: 550mm x 300mm x 700mm, with transparent glass window in front, you can observe the burning situation of the pattern
Equipment dimensions: 840mm x 300mm x 700mm
Nozzle diameter: 9mm
Blowtorch length: 100mm
The equipment is controlled by the touch screen automatic control system, the high pressure ignition is automatically calculated, the flame is automatically extinguished, and the test data can be saved
Complete configuration: control box, combustion box, burner, solenoid valve, high pressure igniter, gas pipe and signal control line group.
