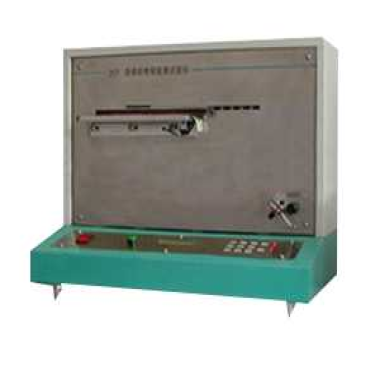

Cantilever Fabric Stiffness Tester

Application:Fabric Stiffness Tester, is a practical equipment to determine the bending height, flexu

Email: info@standard-groups.com

Content

Application:

Fabric Stiffness Tester, is a practical equipment to determine the bending height, flexural rigidity and bending modulus of fabrics. This tester provides a quick and intuitive way to know the stiffness performance of all kinds of fabrics like woven, layered, napped, knitted, pile, and etc.

Standard:

ZB WO4003, GB/T18318, ASTM D 1388, IS09073-7, BS EN22313

Pneumatic fabric stiffness tester features:

With the infrared beam composition "stealth" detection slope, replacing the traditional tangible slope, to achieve non-contact detection, to overcome the twist due to the specimen is tilted up and affect the measurement accuracy of the problem. While making the measurement tilt adjustable.

The automatic detection system overcomes the shortcomings of the visualization and enhances the anti-jamming. Sample pressure plate automatic landing device to ensure that the pressure plate and sample positioning accuracy and consistency, improve work efficiency.

Technical Parameters:

Working mode	computer control, infrared stealth slope detection, LCD Chinese display, report printing
Extension length range	0.5-20.5cm
Measurement accuracy	0.01cm
Specimen specification	2.5×25cm
Specimen pressure plate specification	2.5×25cm
Sample platen advancing speed	0.3cm/s 0.4cm/s 0.5cm/s
Power source	AC220V 50Hz 0.12Kw
Dimensions	470×290×405mm
Weight	18kg

Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
