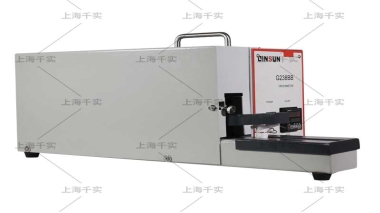

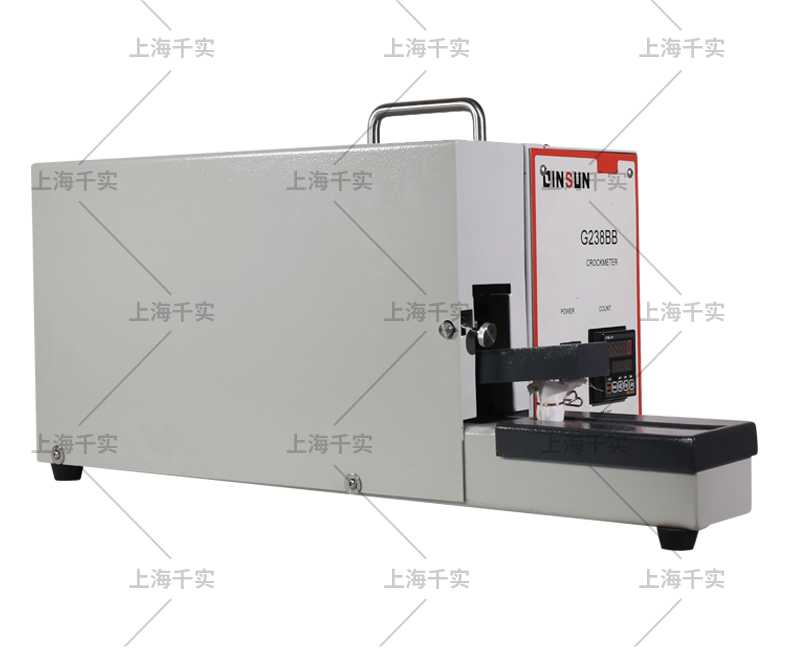

Rubbing colour fastness tester

Friction color fastness test instruments is designed with a base, rubbing rotation mechanism and a counter. Fix the specimen and sand paper with the specimen clamp on one side of the base.

Rotate the knob to rub the friction head with the white cotton cloth against the specimen in reciprocation motion with specified strokes. After ten times of friction between the white cloth and the specimen, assess the color transfer to the white cloth with a gray scale and the stability of dyed fabric specimen or surface coating so as to provide reference data for material assessing and selection.

Rubbing fastness tester is used to determine the colour fastness of cotton, chemical fiber, blended, other coloured fabrics and leather to dry or wet rubbing, suitable for frequent use and long run tests. A piece of dyed test cloth and a piece of white cotton cloth are rubbed against each other though the tester in a specific pressure and stroke.

Product Information and Features:

Electronic Crockmeter is used to determine colour fastness of materials to wet and dry rubbing, suitable for frequent use and long run tests

A.Diameter of friction head:16mm or 25mm;

B.The weight to produce a loading of 9N；

C.Electric drive, working voltage of 220V;

D.Equipped with electronic counter, could completely simulate the results of manual friction for 10 times, with high reproducibility;

E.The fixed device for the standard crocking cloth;

F.A steel spring clip for rapidly fastening samples;

G.Control mode consists of AATCC, ISO standards, and customized setting;

H.Automatic alarm to remind the test over.

Accessories and Consumables:

1.The Crocking Cloth Clamps;

2.Standard Emery Paper For Crockmeter;

3.Pre-cut White Crocking Cloths for AATCC/ISO;

4.Pre-cut White Crocking Cloths for SDC;

5.Crockmeter Calibration Fabric;

6.Grey Scale (Staining) ISO/BS Standards;
