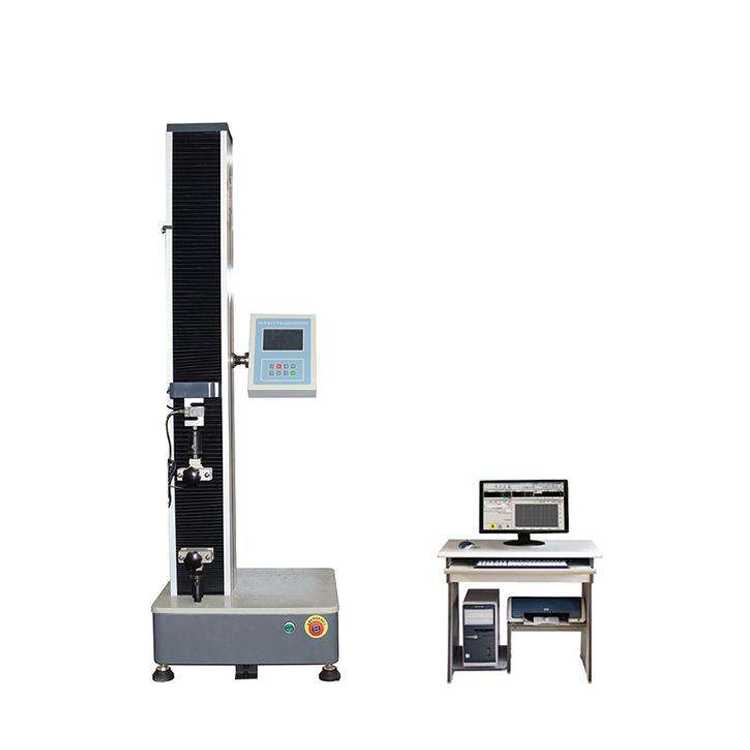

Medical protective material tensile testing machine

All control parameters and measurement results can be real time displayed on the LCD screen. And it has overload protection, displacement measurement and other functions. It can used for a variety of textiles and automotive interior materials tensile strength, tensile break elongation (or elongation rate) test. It can also be used for zipper, leather strength test.

Face mask tensile test machine Feature：

1、Flexible and various interfaces and control methods, which can be used for multiple tests such as stretching, peeling, heat sealing, tearing, puncture, compression, bending, shearing, etc., setting of multiple parameters such as speed, thickness, and pinch.

2、High measurement accuracy, the test measurement accuracy can reach 0.5 grade.

3、The whole process is controlled by a computer, and the test is displayed online after the test. It can automatically perform data storage, data analysis and comparison functions, curve overlay recording function, on-line printing function, arbitrary zoom function.

4、Control and measurement unit can choose built-in type (simple appearance, save space) and external type (easy to upgrade, maintain and operate separately from the computer).

5、Have perfect limit protection, overload protection, emergency stop and other safety protection functions. Make the test run safe and reliable.

6、High sampling rate (100 times / second), make the test data more accurate.

7、The core uses imported parts, which is more accurate and more durable

8、Double-column table structure, beautiful and elegant, good rigidity.

9、Optional pneumatic fixture, suitable for a variety of fixtures.

10、The full digital control system cooperates with imported AC servo system and motor to control the zero displacement.

11、High-precision ball screw loading, stable loading, long testing machine life, long-term stability and energy saving.

12、Wide speed range, suitable for high and low speed tests.

13、Open data structure, whether it is result parameters or process data, allows users to call randomly, users are very convenient. Self-editing report function, the data can be easily imported into an Excel table for easy post-processing.


Protective Mask Tensile Testing Machine Application:

It can used for a variety of textiles and automotive interior materials tensile strength, tensile break elongation (or elongation rate) test. It can also be used for zipper, leather strength test.


Parameters
