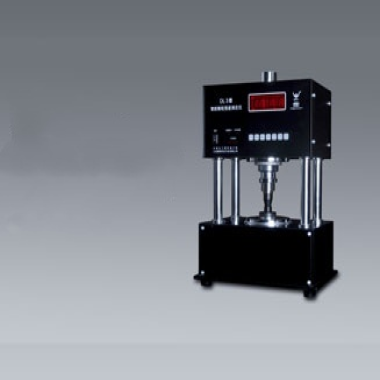

Intelligent Particle Strength Tester

Intelligent Particle Strength Tester is an intelligent measuring instrument, which is widely used in

Email: info@standard-groups.com

Content

Intelligent Particle Strength Tester is an intelligent measuring instrument, which is widely used in the determination of crushing strength of spherical, strip, and columnar rigid materials such as shaped coal, finished balls (cooked balls) in the metallurgical industry, and catalysts, molecular sieves, adsorbents in the chemical, pharmaceutical, and petroleum industries. It is a comprehensive product of the combination of microcomputer technology, electronic technology, and mechanical technology. It uses a single-chip microcomputer as the control core of the entire instrument, a high-precision force sensor as a force detection element, and a high-precision length-measuring device as a length-measuring instrument. The precision operational amplifier ensures the linear processing of analog signals. The reference of a single-chip microcomputer, its real-time sampling, judgment, analysis, and comparison make the instrument have high precision and high stability. The instrument is simple to operate, powerful, and has a high performance-price ratio. The instrument has the functions of data storage, data repeated display, and calculation, without calculation errors, ensuring the accuracy of the calculation results. After the test, you can also connect a dedicated printer or a microcomputer communication interface to print out the "Strength Test Report" or import the test values into the microcomputer for storage. (Dedicated printer and PC communication interface) need to be purchased separately.

The specifications of the DL4 series intelligent particle strength tester include 2000N, 5000N, 10000N (10KN), etc. Like any measuring instrument, when purchasing and using it, you should pay attention to the range of 10%-80%.

Product model specification	2000N	·5000N	10KN
Maximum force value load	·2000N	5000N	10000N
Measured sample size	5mm-100mm
Phase, pair, error, and difference	… …±1%
display resolution	1N
Maximum data storage	... 2,000 individual samples
A variety of ways to work	The instrument provides four working modes which can be set according to different usage: 0_ Force check; 1_ ball sample test · 2_ radial test; · (Additional length tester is required) 3_ Axial test 4_ stack test
Exception data processing	Abnormal data processing can be set, and three elimination methods are provided: 0- · No elimination; 1-eliminate one maximum and minimum; 2 a maximum and minimum two
Low strength value setting	Can set the lower limit value of the qualified index (low intensity value), and can participate in the operation
Calculation function and display mode setting	The calculation of intensity mean, standard deviation, coefficient of variation and low intensity percentage can be performed. Provide two display modes to choose from according to different needs: 1 one displays all (raw data and calculation results) ; 2 one displays the calculation results.
Printing function and printing mode	Connect a special printer (purchased separately), which can be used to print out the strength test report of the original data and the calculation results. Two printing two two be available
etting	according to different needs: 1 one print all (raw data and calculation results) ; 2 one print calculation results.
· overrange protection	The instrument is designed with the overrange protection function, which effectively protects the force sensor from the overload force load, and the pressure head automatically returns when measuring the sample of the super force value range, and the data is invalid.
working power supply	220V±10%…50HZ
Complete machine power consumption	≤200W
