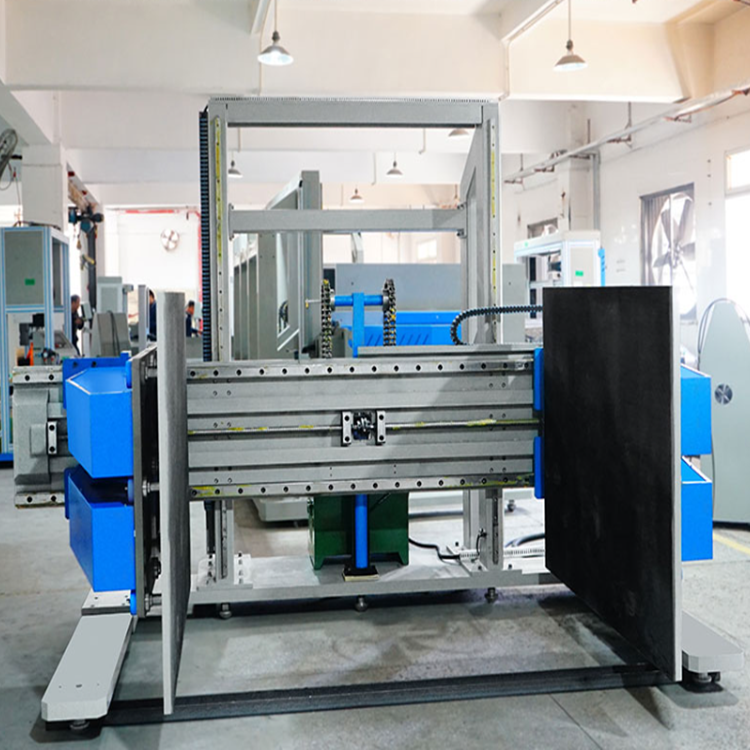

Carton Clamp Tester

Product introduction：

　　This machine mainly aims at the ability of the product to withstand the pressure of

lead from the car when the product is packed in the warehouse or truck, train, etc., so as

to evaluate the damage of the product.

　　This machine adopts servo motor control, full computer operation, high-grade configuration.

　　Tests are customized according to ASTM D6055, U.S., SEARS, corporate standards, or

customer specified non-standard requirements.

Compliance Standards:

ASTM D6055

U.S. SEARS

Product Features:

Based on the provided information and typical clamp tester designs:

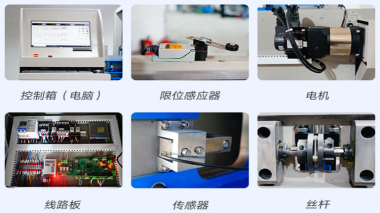

Servo motor control: Utilizes Japan Panasonic servo motors for precise and dynamic control of clamping plate movement and applied force.

Full computer operation: Enables comprehensive control, programming, data acquisition, and analysis via a computer interface.

High-grade configuration: Implies the use of quality components for reliable performance.

Clamping mechanism: Consists of two parallel splints (clamping plates) that apply horizontal pressure to the test sample.

Adjustable clamping pressure: The pressure applied can be adjusted within a wide range (400 - 3000 Lb).

Adjustable clamping plate height: The height of the clamping plates can be set to accommodate different package heights (0-1000mm adjustment range).

Adjustable speeds: Allows control over lifting speed (10-500mm/min) and clamping speed (10-50mm/min).

Adjustable splint expansion width: The distance between the clamping plates can be adjusted to accommodate different package widths (200-2000mm).

Scope of application：

　　Applicable to all product packaging testing and verification. The main test is that the

product packaging is subjected to horizontal pressure during transportation and storage

　　The deformation of the force and the protection ability of the packaging inside the

package, so as to improve the packaging design.

Technical parameter：

　　Sample shape: parallelepiped transport package

　　Maximum test weight: 100kg

　　Clamping pressure: 400——3000Lb（adjustable） pressure can be applied on the

corresponding surface according to the handling diagram on the test sample

　　Clamping plate surface size: 1100x1100mm（L/W）

　　Test space size: 1000x1000x1000mm（length, width and height）

　　Clamping plate height adjustment: 0-1000mm can be set

　　Lifting speed: 10-500mm/mi adjustable

　　Clamping speed: 10-50mm/min adjustable

　　Splint expansion width: 200——2000mm

　　Transmission mode: Japan Panasonic servo motor （left and right clamps）

　　Base plate size: 2000x1900mm

　　Protection device: leakage protection limit device

　　Cleat requirements: Two gripper plates in the working state （2000 pounds） to ensure

smooth without deformation. The two splints are parallel to each other, and the splints are

vertical to the floor. The thickness of the splint shall not be less than 20mm

　　Force corrector: With force value display, used to correct the clamping pressure

　　Force accuracy: national standard 1.6 level
