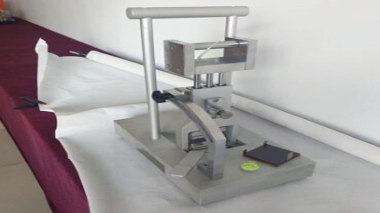

MARK-II anti-slip testing machine

Product Introduction:

Paste the cut sample on the test fixture of the portable MARK-II anti-slip testing machine, put down the weight of the rotating support frame on the test fixture, so that the test piece is pressed on the floor interface by a fixed force, and tilt the rotating support frame of the portable MARK-II anti-slip testing machine, so that the horizontal thrust subjected to the test piece is gradually increased. Until the test piece slides instantaneously. The value of friction coefficient that should be dealt with before the sole test piece slides instantaneously is the large static friction coefficient of the test sole on the floor interface, that is, the anti-slip coefficient.

Reference standard:

ASTM F1677 and other standards

Technical specifications:

1. Sample size: （76±1）*（76±1）mm.

2. Load: 10IBS.

3. Floor requirements: horizontal floor.

4. Volume: 40*22*39cm.
