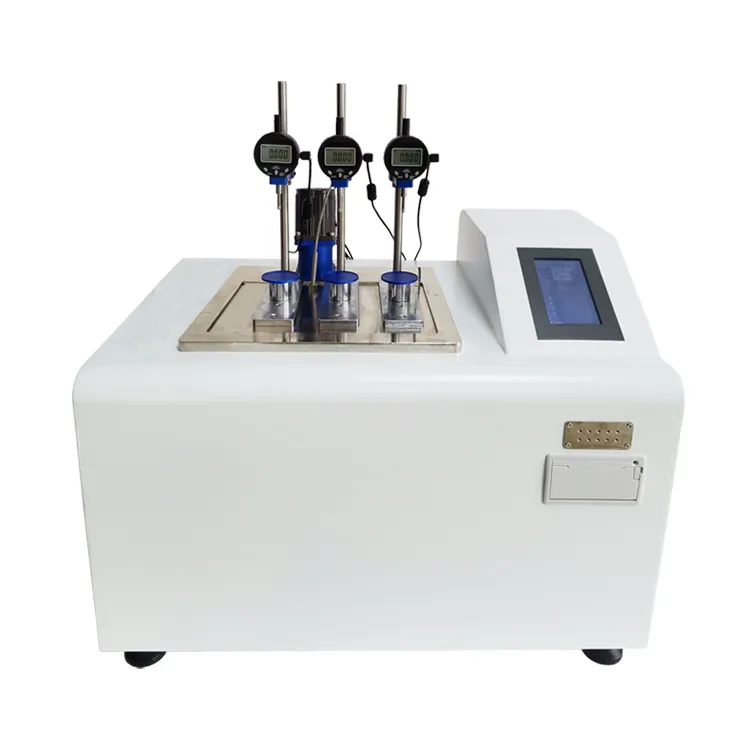

Automatic thermal deformation Vica softening point tester

Product Introduction:

1. Name: Thermal deformation, Vica softening point temperature tester

2. Model :G-1

3, Product introduction: thermal deformation, VICa softening point temperature tester is suitable for non-metallic materials, polymer materials and thermoplastics and thermoplastic pipe fittings thermal deformation, VICa softening point temperature measurement, is the use of the latest international standards and national standards designed and manufactured non-metallic material testing instrument, The testing machine is widely used in chemical industry, scientific research units, colleges and universities, quality inspection departments, but also as a professional production unit ideal test and inspection equipment.

Technical parameters:

1. Temperature control range: ambient temperature ——300 ° C

2. The heating rate: 120 + 10 C/h （12 + 1 ° 6 ℃ / min） or 50 + 5 'C/h （5 + 0.5 ° 6 ℃ / min）

3. Maximum temperature error :±0.5 ° C

4. Deformation measurement method: displacement sensor （accuracy 0.001mm）

5. Deformation measuring range :0mm——2.5mm

6. Maximum deformation error :±0.001mm

7. Number of sample racks: three sets of three temperatures

8. Heating medium: dimethyl silicone oil （buyer's own, physical requirements: flash point above 300℃， viscosity above 200 cess）

9. Heating power :4KW

10. Cooling method: natural cooling above 150'C, natural cooling below 150 "C or water cooling

11. With the protection function of the upper limit temperature arbitrarily set （ambient temperature ——300℃） or the protection of the upper limit of 300℃

12. Control mode :PLC control

13. Working mode of sample rack: automatic lifting

14. Sample support span :64mm/100mm

15. Mixing mode: double motor undamped high-speed mixing, smooth and uniform

16. Maximum test load :50N（5000g）

17. Power supply :AC220V+10%, 50Hz
