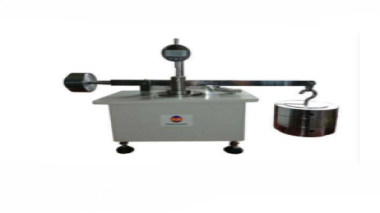

Geosynthetics thickness gauge

Scope of application:

Used to determine the thickness of various geosynthetic materials under specified pressure and time. The sample is placed on the reference plate, and after a specified pressure is applied to the sample with a circular presser foot parallel to the reference plate for a certain period of time, the vertical distance between the two plates is measured, and the thickness of the sample is expressed as the average value of the test results.

Meet the standard:

GB/T13761.1-2009,S0 9863-1-2005,ASTM D5199-2001,JTG E50T1112-2006,SL/T 235-5-2012, etc.

Instrument features:

Design and manufacture according to the standard, in line with the standard specifications;

Shell with special surface treatment, corrosion resistance;

Exquisite mechanical pressure system, simple operation can apply 2KPa, 20KPa, 200KPa precise pressure on the sample;

The adjustable level makes the specimen stressed evenly:

The instrument is easy to install and operate;

Using dial gauge measurement, high precision;

The measurement value is displayed digitally for easy reading.

Technical parameters:

Pressure mode mechanical

Measuring range 0.001——12mm

Minimum division value 0.001mm

Presser foot size 2500mm2

Working pressure 2+0.01kPa,20+0.1kPa,200+1kPa

Overall dimensions 600x300x400mm

Weight 40kg

Standard configuration:

1. One host

2. 1 dial table

3. Use 3 weights

4. 1 pan

5. One battery

6. Four screws for the foot

7. Product packing list 1 copy

8. 1 copy of product manual

9. One copy of product certificate
