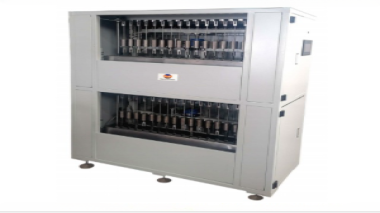

Environmental stress cracking tester for geomembrane

Scope of application:

The stress cracking strength of polyolefin geomembrane was measured and evaluated by notch constant load tensile test. During the test, the dumbbell sample with notch prepared in advance is placed in the thermostatic surfactant under constant load tension, and the fracture time of the sample is measured and recorded. A series of test results under different stress levels can establish a relationship between the stress level and the fracture time on the logarithmic axis.

Meet the standard:

GB/T 17643- Appendix D-2011,ASTM D5397-1999,CJ/T 234- Appendix C-2006,etc.

Technical parameters:

Maximum tensile stress 20MPa

Number of stations 30 can be customized

Water bath temperature range RT——90°C

Temperature control accuracy ±1 ° C

Switch sensitivity 200g

Timing accuracy 1s

Sample thickness 0.75——3mm

Notch depth 20% of the nominal thickness of the sample 6

Power supply AC 380V 50HZ

Overall dimensions 1420x640x1900mm

Weight 380kg
