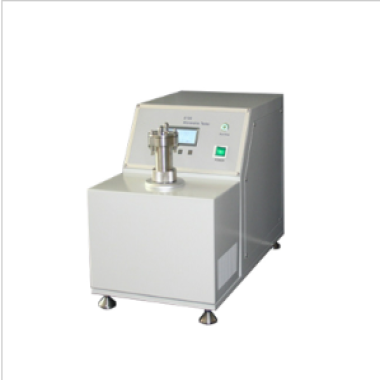

Micron Tester

Product Applications

- **Cotton Planting**: Used in cotton field management and yield assessment.
- **Cotton Procurement**: Facilitates quality evaluation during cotton purchase.
- **Cotton Spinning Quality Control**: Ensures yarn quality by testing raw cotton maturity.

Testing Principle

The instrument employs the **airflow method** to determine the **micronaire value** (cotton maturity index). By applying controlled air pressure to a cotton sample, differences in air permeability due to varying fiber fineness are measured. This allows accurate calculation of the micronaire value, correlating with cotton maturity and quality.

Compliant Standards

- **GB 1103-2007**: China’s national standard for cotton micronaire value determination.
- **ASTM D1448**: International standard for cotton maturity testing via air permeability.
- **BS 3181**: British standard for textile material testing methodologies.
- **ISO 2403**: Global benchmark for cotton quality assessment procedures.

Key Technical Advantages

1. **Broad Measurement Range**
  - World’s widest airflow-based micronaire range: **2.0–7.5**
  - Covers 99% of commercial cotton varieties globally.

2. **Precision & Efficiency**
  - Accuracy: **±0.03 micronaire value** (under standard lab conditions)
  - Test time: **≤15 seconds** per sample

3. **User-Friendly Design**
  - **One-touch operation**: Sample loading → auto-test → result display
  - **USB connectivity**: Export data to Excel or generate PDF reports via included software

4. **Robust Calibration**
  - Quick calibration using certified reference cotton standards
  - Stable performance in non-laboratory environments (e.g., field stations)

Technical Specifications

| Parameter                | Specification                          |
|--------------------------|---------------------------------------|
| **Sample Mass**          | 5.0 ± 0.1 g                            |
| **Power Supply**         | AC 100–240V, 50/60Hz                   |
| **Dimensions**           | 520×280×300 mm (L×W×H)               |
| **Weight**               | 10 kg                                 |
| **Environmental Tolerance** | Operates at 0–40°C, RH 0–80%           |
| **Warranty**              | 24-month comprehensive warranty          |
Configuration Options

- **Standard Package**
 - Main unit + power cable

- **Premium Add-Ons**
 - **LABTest Pro Software**: Advanced data analysis, trend visualization, and custom report templates
 - **Calibration Standards**: Certified reference cotton samples for routine calibration
