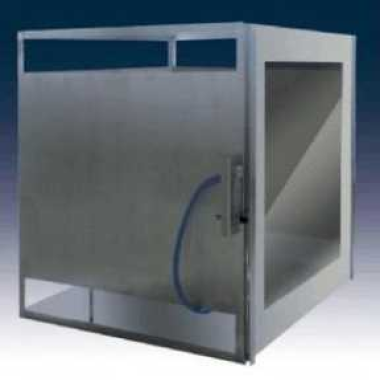

Fire hazards exist everywhere in our daily life. In order to reduce fire accidents due to the flame spread of flammable materials and thus decrease the harm to people’s life and treasure caused by that, the quilting products combustion rate tester draws high attention. The instrument is designed by adopting the latest technology, suitable for measuring the flame spread rate on samples when the quilting product is ignited by the specified ignition flame.
Technical Parameters
| Items | Parameters |
| chamber dimension | 65cm×65cm×70cm, stainless steel |
| Combustion timing range | 0-999.9s, accuracy:0.1s |
| Ignition time | 30s, accuracy:0.1s |
| Ignitor diameter | internal diameter 10mm |
| Sample size | 30×36（cm） |
| Sample holder | 3mm stainless steel concaved holder |
| Distance from the ignitor’s top to the sample | 19mm |
| Distance between the two marker lines | 25cm |
| Flame height | 38mm |
Standards
FZ/T 81005-2006 Quilting products. Appendix D. The combustion rate test method .
Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
