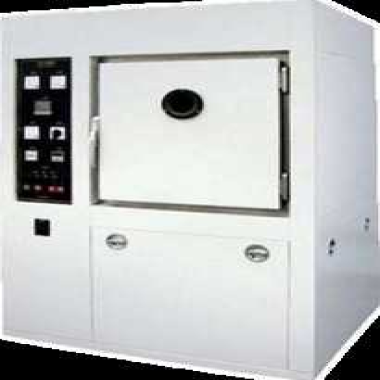

STD-9708 Standard Fade Meter

Lightproof and discoloration test is an accelerated test to find out the impact of ultraviolet rays

Email: info@standard-groups.com

Content


Lightproof and discoloration test is an accelerated test to find out the impact of ultraviolet rays on color change. The scope of test includes dyeing & conditioning, printing, hide, plastics, synthetic glass, paint making, textile, ink, rubber, and other industries using pigments. The test result may be available in a short period and this will help evaluate the degree of lightproof and discoloration.

Feature and specification

Low consumption low cost of test.      The voltage detection auxiliary systems.      Servo current adjustment device.     Box Size of the pull wet system or automatic humidification systems to choose from.   Long-life American original carbon rod.    Barrel tilting specimen holder, the specimen may be waived troubled position of the replacement.     B.P.T. Temperature up to 83oC.


MODEL
ITEM
STD-9708ASTD-9708B
INSIDE DIMENSION700x700x900(WxDxH) mm
OUTSIDE DIMENSION1150x900x1800(WxDxH) mm
LIGHTING SOURCEENCLOSED CARBON ARC
TESTING TIME20Hr or 48Hr*
TEST VOLTAGE120V to 145V(135V)
TEST CURRENT15A to 17A(16A)
SPECIMEN DRUM DIA508mm
DRUM ROTATION SPEED3 RPM
TEST SPECIMEN50x50mm 40 PCS (2 STAGE)
50x50mm 60 PCS (3 STAGE)
HUMIDITY EQUIPMENTTYPEWICK TYPEPAN TYPE
HUMIDITY EQUIPMENTSYSTEMNATURECONTROL
TEMPERATURE RANGERT+10oC ~80oC
HUMIDITY RANGEUNDER 50% RH30%~85% RH
CARBON TYPEUPPER13Φ*305mm (1 UNIT)23Φ*106mm (1 UNIT) 48H
CARBON TYPELOWER13Φ*100mm (2 UNIT)18Φ*105mm (1 UNIT) 48H
