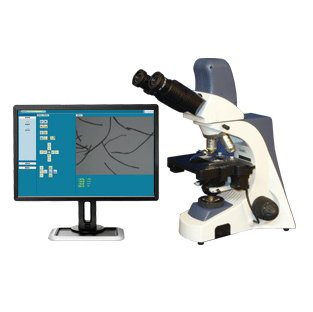

Fiber fineness analyzer

Mainly used for the determination of wool, rabbit hair and other animal fiber diameter and other natural, artificial mixed, blended product fiber content.

Fiber fineness analyzer Main features:
1, the system uses computer digital image processing technology, by the computer, camera, microscope, printer and detection software components;
2, to provide fiber diameter automatic measurement function and hotline help function;
3, for the observation of various types of animal fibers, chemical fiber, shaped fibers, hollow fiber cross-sectional morphology and measurement of cross-sectional area;
4, test the heterotypic fiber shape;
5, through the blended products in a single fiber transverse form analysis and area measurement, you can get a variety of blended products, fiber content;
6, the use of professional analysis software, data and reports to EXCEL output, and provide standard reports.

Main parameters:
1, the work mode: manual measurement, automatic measurement, multi-point measurement; automatic statistical analysis, report printing, photo printing;
2, the instrument structure: computer, CCD camera, microscope, printer;
3, the measurement range: 1-2000um;
4, the measurement accuracy: 0.01um;
5, the device power: AC220V 50Hz 100W.

Standards Compliant:
GB / T 10685-2007 "Wool fiber diameter test method projection microscope method"
GB / T 13835.6-2009 "Rabbit fiber test methods - Part 6: Diameter projection microscope method"
GB / T 3364-2008 "carbon fiber diameter and root number test method"
GB / T 16988 "Special Animal Fibers and Wool Mixture Determination"
FZ / T30003 "Cotton and linen blended products quantitative analysis method of microscopic projection method"
SN / T0756 "import and export of linen / cotton blended products quantitative analysis method of microscopic projection method"

Features:
1, The system uses computer digital image processing technology, composed of computers, cameras,microscopes, printers and testing software. It Provides fiber diameter automatic measurement function and hotline help function.
2, The instrument is used to observe the cross-sectional morphology of various animal fibers, chemical fibers, shaped fibers, form of hollow fibers cross-sectional area and measure the cross-sectional area;
3, test the abnormal degree of  shaped fiber profile;
4,The fiber content of all kinds of blended products can be obtained by analyzing the cross-sectional morphology and measuring the area of blended products  ;
5,  use the professional analysis software, data and statements to EXCEL output, and provide standard reports.

Brief Introduction of Function :
1, fiber qualitative analysis:
FZ / T 01057.3 "textile fiber identification test method Part III microscopy"
AATCC 20 "Qualitative Fiber Analysis"

2, fiber diameter experiment:
GB / T 10685 "wool fiber diameter test method projection microscope method"
ISO 137 "Wool Fiber Diameter Projection Microscopy"
IWTO-8 "Microscope Projector Measurement of Wool Fiber Diameter Distribution and Wool and Other Animal

Fibrillamellation Percentage Methods"
GB / T 3364 "carbon fiber diameter and equivalent diameter test method (microscopy)"

3, Diameter automatic measurement:
GB / T 20732-2006 "fiber diameter optical analyzer"
IWTO-47-00 "optical fiber diameter analyzer to determine the average diameter of wool fibers and the distribution of the provisions of"

4, fiber content experiment:
GB / T 16988 "Special Animal Fibers and Wool Mixture Determination"
ISO 17751: 2007 "Animal Fiber Microscopy Quantitative Analysis Methods Cashmere, Wool, Other Animal Fluff and Mixtures"
FZ / T 30003-2009 "Cotton and linen blended products quantitative analysis method of microscopic projection method"
FZ / T 32004-2009 "Cotton and linen blended products quantitative analysis method of microscopic projection method"

Advantage:
1. Operators not need to work in darkrooms that can reduce fatigue and have the performance of demonstrating .
2.  Improve the efficiency :the detection speed is inproved greatly than the traditional detection speed .
3. Test records can be printed out that improve the rigor and the controversial sample can print out the image for inquiry;
4. improve the detection effect on the dark fibers  in the case of not stripping
5. have English software 、 cross-section software and cotton and linen software.
