The instrument uses a roller type fiber length analyzer, which will be arranged in a row of cotton c
Email: info@standard-groups.com
The instrument uses a roller type fiber length analyzer, which will be arranged in a row of cotton cellulose according to a certain set of groups weighing, and then calculate the fiber length of the various indicators.

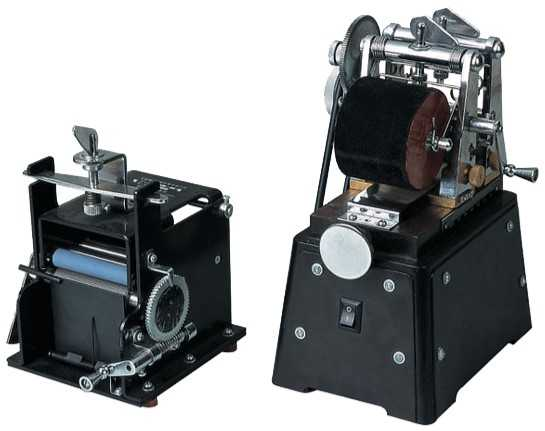

The instrument is used to analyze the length of cotton fiber or chemical fiber. It is made up of two parts: fiber stretcher and analyzer-The instrument is used to analyze the length of cotton fiber or chemical fiber.
Technical Parameters
| Items | Parameters |
| Fiber draw-off unit | Diameter of front roller 8mm |
| Diameter of rear roller 16mm | |
| Diameter of covered roller 17mm | |
| Diameter of velvet lap roller 66mm | |
| Fiber analyzer | Diameter of input roller 19.1mm |
| Spring of analyzer 70N | |
| Dimension | L205×W150×H240mm |
Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
