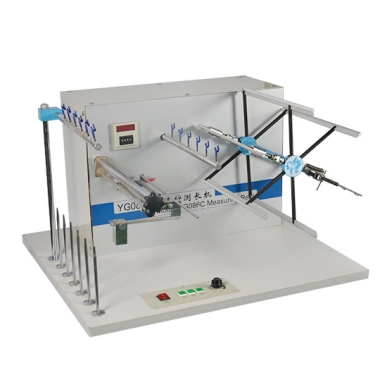

Skein Length Tester

The Skein Length Tester is used to accurately measure the length of the yarn, for the determination

Email: info@standard-groups.com

Content

The Skein Length Tester is used to accurately measure the length of the yarn, for the determination of the yarn density or count of the yarn and the yarn strength test.

Standards
GB/T 4743 Textiles－Yarn from packages－Determination of linear density (mass per unit length) by the skein method
GB/T 14343 Testing method for linear density of synthetic filament yarns
GB/T 6838 Testing method for sewing threads
ISO 2060 Textiles-Yarn from packages-Determination of linear density (mass per unit length)-Skein method
ASTM D1907 Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

Features
OEM modeling
True single-chip microcomputer control, digital circuit, start and stop smoothly. You can design parameters. Besides, it is real-time speed, and the whole machine is no contact relay
It can be set to stop the first 1 ~ 5 laps in advance to slow down to greatly avoid the phenomenon of punching, mature and reliable electrical circuit: start and stop smooth, low noise operation, accurate circle, no ring phenomenon, good reliability, low failure rate
And the microcontroller set as one of the electronic counter.
With real-time speed function
Continuous step-less speed regulation

Structure principle:

1, the real single-chip domination, mature and reliable electrical circuits: start and stop smoothly, low noise, accurate loop-counting, no loop-clashing phenomenon, Good reliability low failure rate.

2, SCM design as one of the electronic counter

3, with the real-time speed measurement function

4, continuous variable speed

5, can set the final stop early deceleration, smoothly stop rotating , greatly avoiding the phenomenon of loop-clash

6, the sensor dynamic measurement, LED display

Main Specifications:

1, can be swirled only count: 1 ~ 6 tube

2, yarn frame circumference: 1000mm ± 1mm

3, yarn frame speed: 30r / min ~ 260r / min (Promise speed)

4, yarn frame laps set range: 2 ~ 9999 circle

5, swinging traverse reciprocating stroke: 35mm ± 0.5mm

6, a single yarn tension range: 0cN ~ 100cN

7, Tension test method: dynamic sensor measurement, digital display

8, 1 to 5 laps ahead of time to stop the slow setting, stop rotating smoothly, no skidding, punching phenomenon

9, SCM design as one of the electronic counter

10, all LCD display, no wear and tear

11, motor power: 60W

12, the power supply voltage: AC220V, 50HZ

13, Dimensions: 780mm × 660mm × 480mm

14, equipment weight: about 45Kg

Features Function:

1, design of the overall structure is firm , and adopt the stainless steel and aluminum alloy material, long life and good stability.

2, with the need to install pre-tension device to improve the accuracy of unit testing .

3, with the pre-set fixed length winding wire counter, easy to use.

4, can be equipped with pressure dust cover, to prevent dust and protect the operation to avoid the scruples of clip injuries.

5, equipped with emergency safety switch.

Technical Parameters

Items	Parameters
Frame perimeter	G171C：1000mm± 1mm G171E：54in± 1/16in(export only)
Single yarn tension range	0~100cN/Single yarn
Shake yarn traverse reciprocating width	35mm
Test tube can be tested at the same time	6
Dimensions	780×660×480mm(L×W×H)

Product Display:
