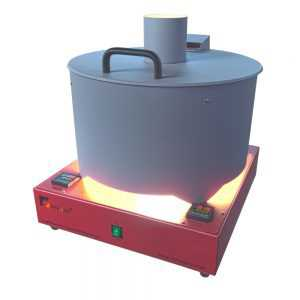

Mercury Lamp Solar Aging Tester

Description:It is used in various types of textiles to accelerate the aging of mercury lamps under s

Email: info@standard-groups.com

Description:

It is used in various types of textiles to accelerate the aging of mercury lamps under simulated sunlight.

Standard model fitted with 500 watt mercury blended tungsten lamp, pre-settable timer and time elapsed counter. Can be fitted with type C & D sample holders within which humidity can be controlled using saturated salts. Rapid Light Fastness Tester.

Rapid fade model fitted with 400 watt mercury tungsten high power lamp with transformer, pre-settable timer and time elapsed counter. Can be fitted with type D sample holders.



Characteristics:

1. LCD touch screen display

2. Adopting the German Osram mercury lamp



Standards:

BS 1006 UK/TN



Technical Parameters:

Items	Parameters
Light source	MBTL (mercury tungsten lamp) 500W
Lamp life	5000h
Indoor temperature room	room temperature to 50 degrees
Temperature control	by water cycling in the sample holder and indoor
Internal humidity	50 - 60% RH
Sample clip	stainless steel
Sample size	100 x 50 mm
Water tank	stainless steel
The circulating water pump	separated from the main components
Exposure area	1800cm2
The distance between lamp and sample	200 ± 5cm
Power supply	230 V, single phase AC 50 Hz
Energy consumption	0.75 kilowatt hours
Instrument size	500 * 550 * 700 mm
